水波纹进度条，带有“水波纹”或“扭曲”效果

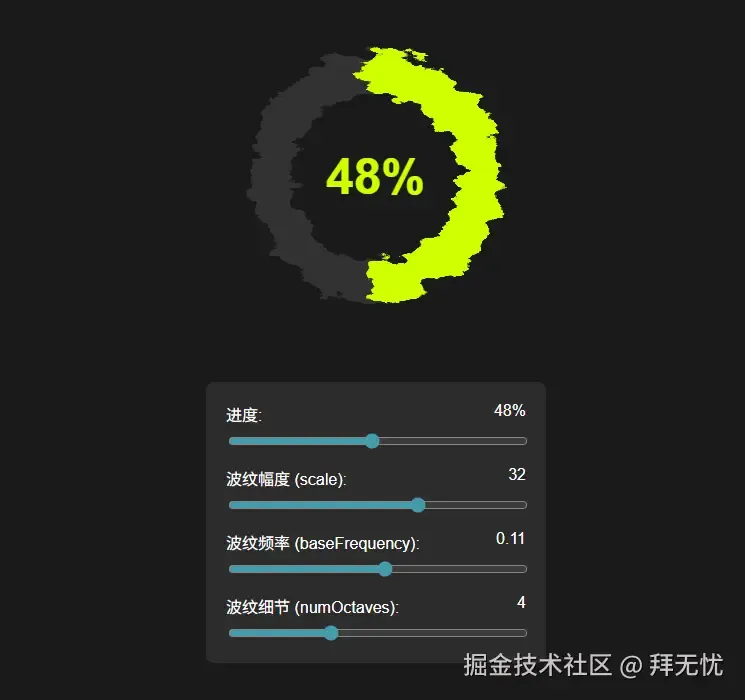

基础版本
「绘制基础图形 (HTML/SVG)」
- 我们先用
<svg>标签画出两个叠在一起的圆环（<circle>）：一个作为灰色的背景，另一个作为亮黄色的进度条。 - 通过 CSS 的
stroke-dasharray和stroke-dashoffset属性，我们可以精确地控制黄色圆环显示多少，从而实现进度条功能。
「创建 “水波纹” 滤镜 (SVG Filter)」
- 这是最关键的一步。我们在 SVG 中定义了一个
<filter>。 - 滤镜内部，首先使用 「
feTurbulence」 标签生成一张看不见的、类似云雾或大理石纹理的「随机噪声图」。这个噪声图本身就是动态变化的。 - 然后，使用 「
feDisplacementMap」 标签，将这张噪声图作为一张 “置换地图”，应用到我们第一步画的圆环上。它会根据噪声图的明暗信息，去「扭曲和移动」圆环上的每一个点，于是就产生了我们看到的波纹效果。
「添加交互控制 (JavaScript)」
- 最后，我们用 JavaScript 监听几个 HTML 滑块（
<input type="range">）的变化。 - 当用户拖动滑块时，JS 会实时地去修改 SVG 滤镜中的各种参数，比如
feTurbulence的baseFrequency（波纹的频率）和feDisplacementMap的scale（波纹的幅度），让用户可以自由定制喜欢的效果。
<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8">
<meta>
<title>动态水波纹边框</title>
<style>
:root {
--progress: 50;
/* 进度: 0-100 */
--base-frequency-x: 0.05;
--base-frequency-y: 0.05;
--num-octaves: 2;
--scale: 15;
--active-color: #ceff00;
--inactive-color: #333;
--bg-color: #1a1a1a;
--text-color: #ceff00;
}
body {
display: flex;
justify-content: center;
align-items: center;
min-height: 100vh;
background-color: var(--bg-color);
font-family: Arial, sans-serif;
margin: 0;
flex-direction: column;
gap: 40px;
}
.progress-container {
width: 250px;
height: 250px;
position: relative;
}
.progress-ring {
width: 100%;
height: 100%;
transform: rotate(-90deg);
/* 让起点在顶部 */
filter: url(#wobble-filter);
/* 应用SVG滤镜 */
}
.progress-ring__circle {
fill: none;
stroke-width: 20;
transition: stroke-dashoffset 0.35s;
}
.progress-ring__background {
stroke: var(--inactive-color);
}
.progress-ring__progress {
stroke: var(--active-color);
stroke-linecap: round;
/* 圆角端点 */
}
.progress-text {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
color: var(--text-color);
font-size: 50px;
font-weight: bold;
}
.controls {
display: flex;
flex-direction: column;
gap: 15px;
background: #2c2c2c;
padding: 20px;
border-radius: 8px;
color: white;
width: 300px;
}
.control-group {
display: flex;
flex-direction: column;
gap: 5px;
}
.control-group label {
display: flex;
justify-content: space-between;
}
input[type="range"] {
width: 100%;
}
</style>
</head>
<body>
<div class="progress-container">
<svg class="progress-ring" viewBox="0 0 120 120">
<!-- 背景圆环 -->
<circle class="progress-ring__circle progress-ring__background" r="50" cx="60" cy="60"></circle>
<!-- 进度圆环 -->
<circle class="progress-ring__circle progress-ring__progress" r="50" cx="60" cy="60"></circle>
</svg>
<div class="progress-text">50%</div>
</div>
<!-- SVG 滤镜定义 -->
<svg width="0" height="0">
<filter id="wobble-filter">
<!--
feTurbulence: 创建湍流噪声
- baseFrequency: 噪声的基础频率，值越小，波纹越大越平缓
- numOctaves: 噪声的倍频数，值越大，细节越多越锐利
- type: 'fractalNoise' 或 'turbulence'
-->
<feTurbulence id="turbulence" type="fractalNoise" baseFrequency="0.05 0.05" numOctaves="2" result="turbulenceResult">
<!-- 动画：让 turbulence 的基础频率动起来，模拟流动效果 -->
<animate attribute></animate>
</feTurbulence>
<!--
feDisplacementMap: 用一个图像（这里是上面的噪声）来置换另一个图像
- in: 输入源，这里是 SourceGraphic，即我们的圆环
- in2: 置换图源，这里是上面生成的噪声
- scale: 置换的缩放因子，即波纹的幅度/强度
- xChannelSelector / yChannelSelector: 指定使用噪声的哪个颜色通道进行置换
-->
<feDisplacementMap in="SourceGraphic" in2="turbulenceResult" scale="15" xChannelSelector="R" yChannelSelector="G"></feDisplacementMap>
</filter>
</svg>
<div class="controls">
<div class="control-group">
<label for="progress">进度: <span id="progress-value">50%</span></label>
<input type="range" id="progress" min="0" max="100" value="50">
</div>
<div class="control-group">
<label for="scale">波纹幅度 (scale): <span id="scale-value">15</span></label>
<input type="range" id="scale" min="0" max="50" value="15" step="1">
</div>
<div class="control-group">
<label for="frequency">波纹频率 (baseFrequency): <span id="frequency-value">0.05</span></label>
<input type="range" id="frequency" min="0.01" max="0.2" value="0.05" step="0.01">
</div>
<div class="control-group">
<label for="octaves">波纹细节 (numOctaves): <span id="octaves-value">2</span></label>
<input type="range" id="octaves" min="1" max="10" value="2" step="1">
</div>
</div>
<script>
const root = document.documentElement;
const progressCircle = document.querySelector('.progress-ring__progress');
const progressText = document.querySelector('.progress-text');
const radius = progressCircle.r.baseVal.value;
const circumference = 2 * Math.PI * radius;
progressCircle.style.strokeDasharray = `${circumference} ${circumference}`;
function setProgress(percent) {
const offset = circumference - (percent / 100) * circumference;
progressCircle.style.strokeDashoffset = offset;
progressText.textContent = `${Math.round(percent)}%`;
root.style.setProperty('--progress', percent);
}
// --- 控制器逻辑 ---
const progressSlider = document.getElementById('progress');
const scaleSlider = document.getElementById('scale');
const frequencySlider = document.getElementById('frequency');
const octavesSlider = document.getElementById('octaves');
const progressValue = document.getElementById('progress-value');
const scaleValue = document.getElementById('scale-value');
const frequencyValue = document.getElementById('frequency-value');
const octavesValue = document.getElementById('octaves-value');
const turbulence = document.getElementById('turbulence');
const displacementMap = document.querySelector('feDisplacementMap');
progressSlider.addEventListener('input', (e) => {
const value = e.target.value;
setProgress(value);
progressValue.textContent = `${value}%`;
});
scaleSlider.addEventListener('input', (e) => {
const value = e.target.value;
displacementMap.setAttribute('scale', value);
scaleValue.textContent = value;
});
frequencySlider.addEventListener('input', (e) => {
const value = e.target.value;
turbulence.setAttribute('baseFrequency', `${value} ${value}`);
frequencyValue.textContent = value;
});
octavesSlider.addEventListener('input', (e) => {
const value = e.target.value;
turbulence.setAttribute('numOctaves', value);
octavesValue.textContent = value;
});
// 初始化
setProgress(50);
</script>
</body>

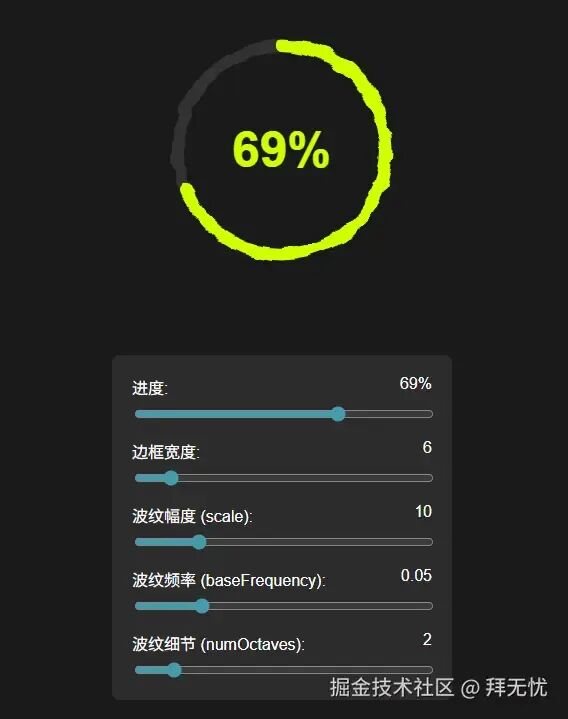

</html>第二版本 – 带进度条边框宽度版本
<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8">
<meta>
<title>动态水波纹边框</title>
<style>
:root {
--progress: 50;
/* 进度: 0-100 */
--stroke-width: 20;
/* 边框宽度 */
--base-frequency-x: 0.05;
--base-frequency-y: 0.05;
--num-octaves: 2;
--scale: 15;
--active-color: #ceff00;
--inactive-color: #333;
--bg-color: #1a1a1a;
--text-color: #ceff00;
}
body {
display: flex;
justify-content: center;
align-items: center;
min-height: 100vh;
background-color: var(--bg-color);
font-family: Arial, sans-serif;
margin: 0;
flex-direction: column;
gap: 40px;
}
.progress-container {
width: 250px;
height: 250px;
position: relative;
}
.progress-ring {
width: 100%;
height: 100%;
transform: rotate(-90deg);
/* 让起点在顶部 */
filter: url(#wobble-filter);
/* 应用SVG滤镜 */
}
.progress-ring__circle {
fill: none;
stroke-width: var(--stroke-width);
transition: stroke-dashoffset 0.35s;
}
.progress-ring__background {
stroke: var(--inactive-color);
}
.progress-ring__progress {
stroke: var(--active-color);
stroke-linecap: round;
/* 圆角端点 */
}
.progress-text {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
color: var(--text-color);
font-size: 50px;
font-weight: bold;
}
.controls {
display: flex;
flex-direction: column;
gap: 15px;
background: #2c2c2c;
padding: 20px;
border-radius: 8px;
color: white;
width: 300px;
}
.control-group {
display: flex;
flex-direction: column;
gap: 5px;
}
.control-group label {
display: flex;
justify-content: space-between;
}
input[type="range"] {
width: 100%;
}
</style>
</head>
<body>
<div class="progress-container">
<svg class="progress-ring" viewBox="0 0 120 120">
<!-- 背景圆环 -->
<circle class="progress-ring__circle progress-ring__background" r="50" cx="60" cy="60"></circle>
<!-- 进度圆环 -->
<circle class="progress-ring__circle progress-ring__progress" r="50" cx="60" cy="60"></circle>
</svg>
<div class="progress-text">50%</div>
</div>
<!-- SVG 滤镜定义 -->
<svg width="0" height="0">
<filter id="wobble-filter">
<!--
feTurbulence: 创建湍流噪声
- baseFrequency: 噪声的基础频率，值越小，波纹越大越平缓
- numOctaves: 噪声的倍频数，值越大，细节越多越锐利
- type: 'fractalNoise' 或 'turbulence'
-->
<feTurbulence id="turbulence" type="fractalNoise" baseFrequency="0.05 0.05" numOctaves="2" result="turbulenceResult">
<!-- 动画：让 turbulence 的基础频率动起来，模拟流动效果 -->
<animate attribute></animate>
</feTurbulence>
<!--
feDisplacementMap: 用一个图像（这里是上面的噪声）来置换另一个图像
- in: 输入源，这里是 SourceGraphic，即我们的圆环
- in2: 置换图源，这里是上面生成的噪声
- scale: 置换的缩放因子，即波纹的幅度/强度
- xChannelSelector / yChannelSelector: 指定使用噪声的哪个颜色通道进行置换
-->
<feDisplacementMap in="SourceGraphic" in2="turbulenceResult" scale="15" xChannelSelector="R" yChannelSelector="G"></feDisplacementMap>
</filter>
</svg>
<div class="controls">
<div class="control-group">
<label for="progress">进度: <span id="progress-value">50%</span></label>
<input type="range" id="progress" min="0" max="100" value="50">
</div>
<div class="control-group">
<label for="stroke-width">边框宽度: <span id="stroke-width-value">20</span></label>
<input type="range" id="stroke-width" min="1" max="50" value="20" step="1">
</div>
<div class="control-group">
<label for="scale">波纹幅度 (scale): <span id="scale-value">15</span></label>
<input type="range" id="scale" min="0" max="50" value="15" step="1">
</div>
<div class="control-group">
<label for="frequency">波纹频率 (baseFrequency): <span id="frequency-value">0.05</span></label>
<input type="range" id="frequency" min="0.01" max="0.2" value="0.05" step="0.01">
</div>
<div class="control-group">
<label for="octaves">波纹细节 (numOctaves): <span id="octaves-value">2</span></label>
<input type="range" id="octaves" min="1" max="10" value="2" step="1">
</div>
</div>
<script>
const root = document.documentElement;
const progressCircle = document.querySelector('.progress-ring__progress');
const progressText = document.querySelector('.progress-text');
const radius = progressCircle.r.baseVal.value;
const circumference = 2 * Math.PI * radius;
progressCircle.style.strokeDasharray = `${circumference} ${circumference}`;
function setProgress(percent) {
const offset = circumference - (percent / 100) * circumference;
progressCircle.style.strokeDashoffset = offset;
progressText.textContent = `${Math.round(percent)}%`;
root.style.setProperty('--progress', percent);
}
// --- 控制器逻辑 ---
const progressSlider = document.getElementById('progress');
const strokeWidthSlider = document.getElementById('stroke-width');
const scaleSlider = document.getElementById('scale');
const frequencySlider = document.getElementById('frequency');
const octavesSlider = document.getElementById('octaves');
const progressValue = document.getElementById('progress-value');
const strokeWidthValue = document.getElementById('stroke-width-value');
const scaleValue = document.getElementById('scale-value');
const frequencyValue = document.getElementById('frequency-value');
const octavesValue = document.getElementById('octaves-value');
const turbulence = document.getElementById('turbulence');
const displacementMap = document.querySelector('feDisplacementMap');
progressSlider.addEventListener('input', (e) => {
const value = e.target.value;
setProgress(value);
progressValue.textContent = `${value}%`;
});
strokeWidthSlider.addEventListener('input', (e) => {
const value = e.target.value;
root.style.setProperty('--stroke-width', value);
strokeWidthValue.textContent = value;
});
scaleSlider.addEventListener('input', (e) => {
const value = e.target.value;
displacementMap.setAttribute('scale', value);
scaleValue.textContent = value;
});
frequencySlider.addEventListener('input', (e) => {
const value = e.target.value;
turbulence.setAttribute('baseFrequency', `${value} ${value}`);
frequencyValue.textContent = value;
});
octavesSlider.addEventListener('input', (e) => {
const value = e.target.value;
turbulence.setAttribute('numOctaves', value);
octavesValue.textContent = value;
});
// 初始化
setProgress(50);
</script>
</body>
</html>
